DX-V1

VETOO Static DR

VETOO DX-V1, the all-new intelligent DR system. Specifically engineered for smart pet imaging.

Advantages

Small focal spot tube, clear imaging

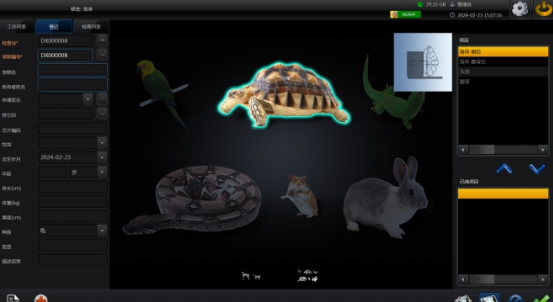

Vetoo animal-specific software

Collimator

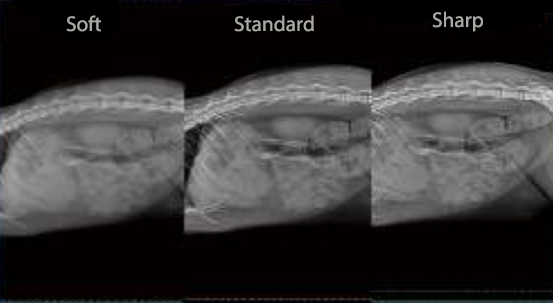

Three image processing curves tailored for different clinical scenarios

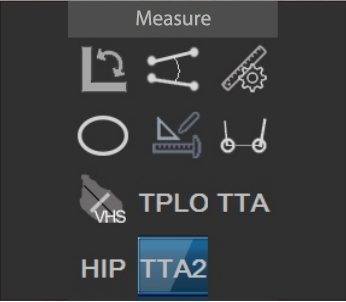

Multiple auxiliary
measurement tools

VETOO V1 Static DR

High-cost manufacturing process for 0.5 small focal spot tube.

Reduces image blurring caused by imaging artifacts.

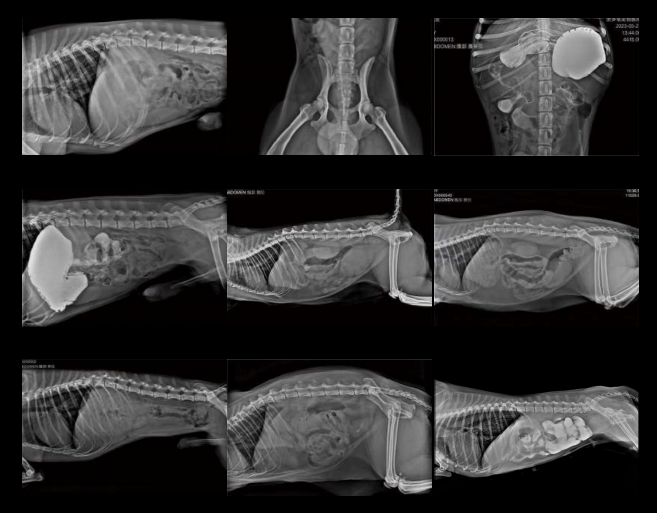

Delivers higher-definition images.

First-tier brand flat panel with 17*17 large size, 140μm pixel dimension, high DOE and MTF.

Stable and clear imaging with low radiation dose.

Specifically designed to provide low-radiation, high-quality images for pets.

High-standard high-voltage generator for the pet field with high inverter frequency: 300KHZ.

Provides precise power input to the tube, ensuring stable X-ray dose.

Durable and reliable, reducing long-term operational costs.

Intelligent and comprehensive workflow with powerful post-processing functions.

Custom software presets designed specifically for pets, simplifying operational procedures.

Improves veterinarians' work efficiency and presents perfect images.

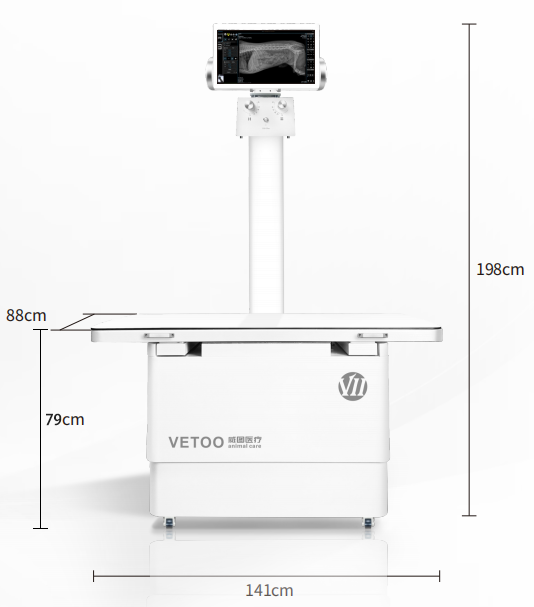

Product Size

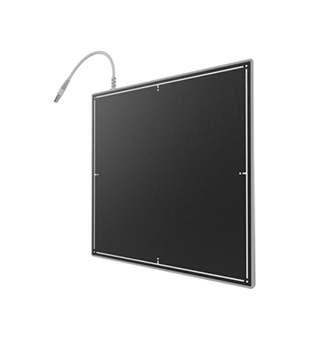

Flat Panel Detector
Detector Technology,Sensor/Scintillator	Amorphous/Iodide Cesium
Imaging Size	17X17 inches
Pixel Size	140 μm
Trigger Mode	AED/Prep/Soft Trigger

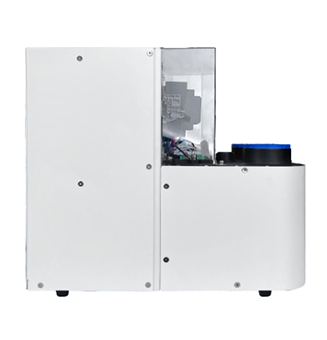

X - ray Generator
Current and Voltage	Single - phase three - wire system 220V±22V
Rated Power	32kW
Maximum Tube Voltage	125kV
Maximum Tube Current	400mA

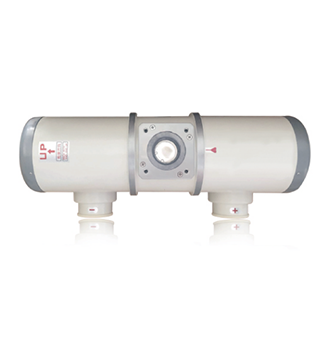

X - ray Tube (Toshiba E7239)
Focal Spot Size	1.0mm/2.0mm
Heat Capacity Size	140KHU

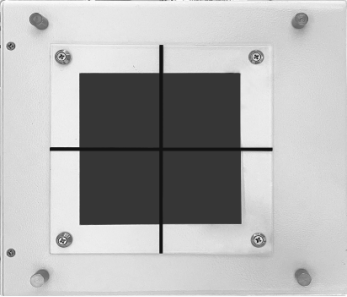

Collimator
Pet - specific Bed
Body Size	141x88x198(cm)

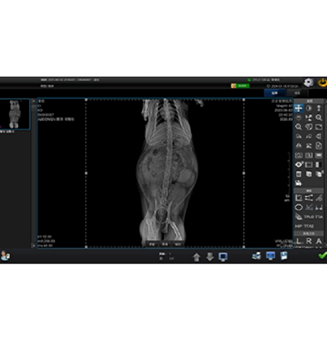

Special Software for Animal Acquisition
Minimum Room Size	2m*1.5m, Minimum Door Width: 65cm
