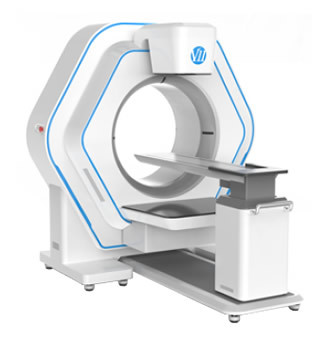

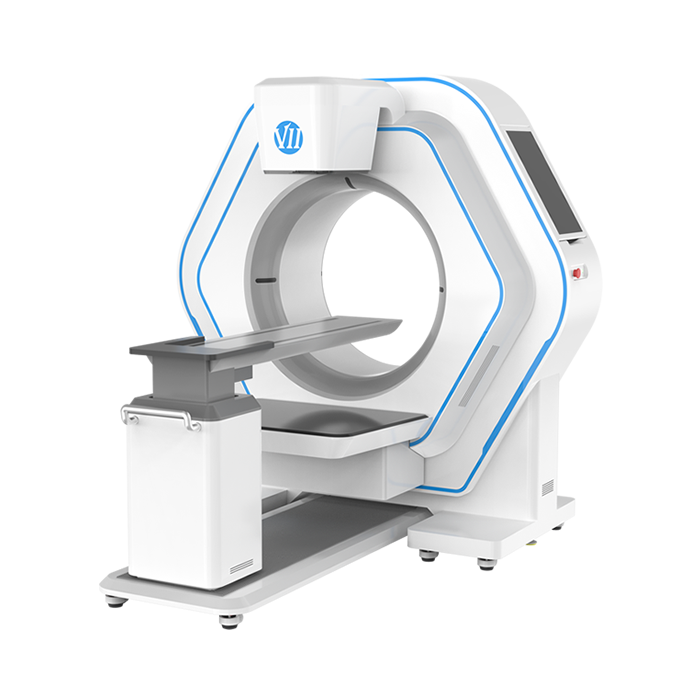

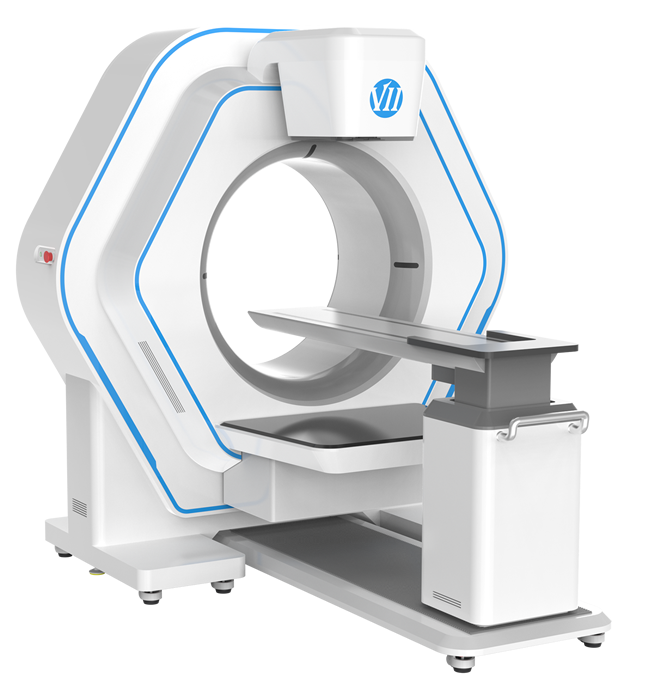

DX-Auto Pro

Veterinary Multi-functional CT Scanner

The open-ring gantry combined with a modular architecture allows seamless transition between multiple imaging modes, including CT, DR, dynamic DR, C-arm, and DSA. The extra-large scanning aperture can accommodate large dog breeds weighing up to 80 kg, ensuring versatility across a wide range of veterinary applications.

Six-in-one multi-function system
Wide-area imaging field of view
Compact footprint for space-limited clinics
Supports three-phase contrast enhancement
Integrated CT breath-hold and respiratory suppression functions
Ultra-fast scanning: minimum 6-second scan time
High spatial resolution: 1.8 lp/mm

Enquiry

Video

Advantages

Large-Breed CT Scanning Capability

The ring gantry, combined with an 80cm extra-large scan aperture, can accommodate large dog breeds weighing up to 80kg, solving the spatial limitation problems encountered when scanning Golden Retrievers, Alaskan Malamutes, and other large pets with traditional equipment.
Pet-Centric CT Design

The open structure allows veterinarians to observe the pet's condition in real-time during the scan. The gantry's externally mounted rotating mechanism uses silent drive technology to reduce operating noise and further minimize acoustic stimulation for sensitive pets.
Stable Operation with High Power

The system delivers consistent 20kW power output while maintaining exceptional gantry stability, even during unexpected pet movement. The patented ring support structure reduces X-ray tube oscillation, virtually eliminating motion artifacts in dynamic DR studies.

Imaging Modes

Static/Dynamic

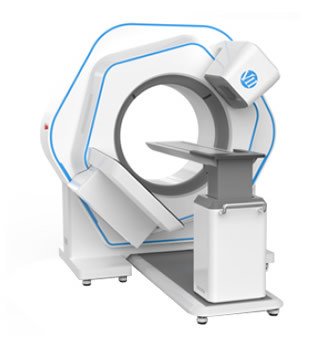

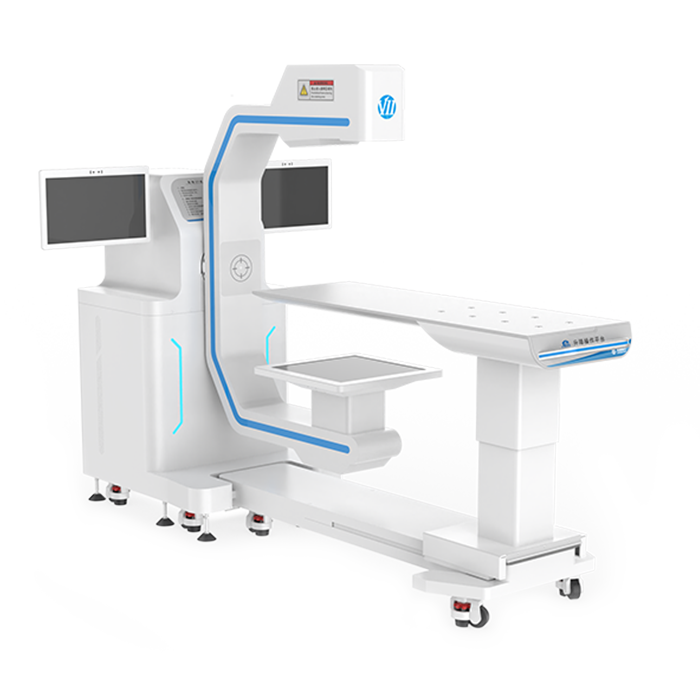

DR Mode

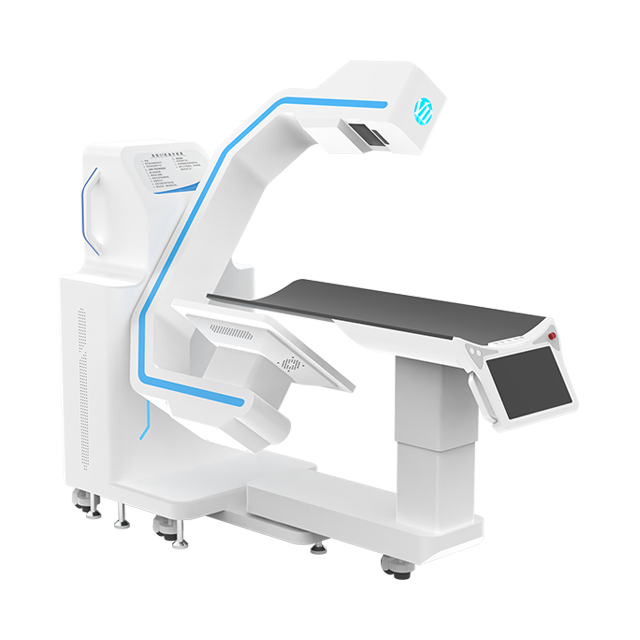

O-Arm Mode
Static/Dynamic DR

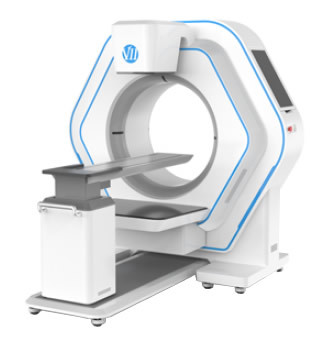

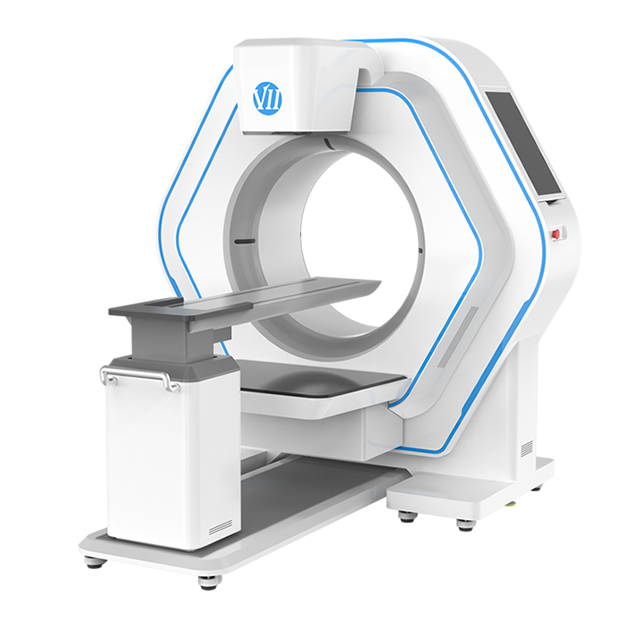

CT Scan Mode

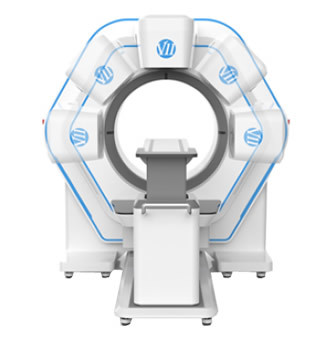

360° Rotation
DSA Mode
(Optional)

Product Features

Six-in-One Functionalit

CT, DR, Dynamic DR, O-arm, DSA(Optional), Dental Panoramic

Wide-Area Imaging Field of View

Easily achieves a 42cm*86cm wide-area imaging field of view

Small Footprint

Occupies less than 7 square meters, space-saving

Foldable Flat Panel Design

Foldable flat panel design, only 80cm wide when folded, enabling easy passage through lead-room doors

Supports 3-Phase Contrast Enhancement
Supports CT Breath-Hold
6-Second Minimum Scan Time
1.8lp/mm Image Spatial Resolution
Integrated,Mobile

Real-time Observation

The open structure allows veterinarians to observe the pet's condition in real-time during the scan, making it particularly suitable for intraoperative monitoring of critical cases.

Ultra-Low Noise

The gantry's externally mounted rotating mechanism uses silent drive technology to reduce operating noise and further minimize acoustic stimulation for sensitive pets

Integrated Design

The open ring gantry and modular design enable seamless switching among multiple imaging modes such as CT, DR, dynamic DR, O-arm, and DSA.

6

6-Second Minimum Scan Time

Effectively reduces motion artifacts,ensuring the acquisition of clear image data.
1.8

High Spatial Resolution of 1.8lp/mm

Enables the equipment to clearly present fine anatomical structures.
80

CT Scan Aperture of 80cm

Can easily accommodate large dogs with a standing height of up to 70cm.

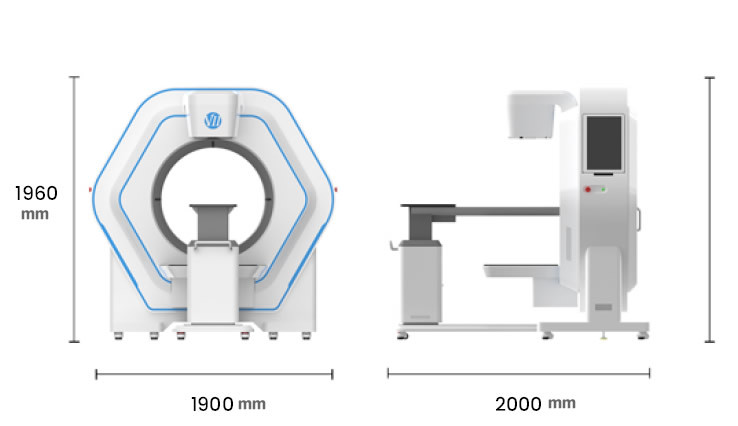

Product Size

No.	Function	CT, DR, Dynamic DR
1	Gantry Structure	O-arm
2	CT Maximum Imaging Field of View	Diameter 42cm, Length 86cm
3	CT Image Spatial Resolution	1.8lp/mm
4	CT Minimum Scan Time	6S
5	DR/Dynamic DR Imaging Field of View	43cm x 43cm
6	DR/Dynamic DR Image Spatial Resolution	≥3.6lp/mm
7	Overall Dimensions	See Dimensions Marked in the Image Above
