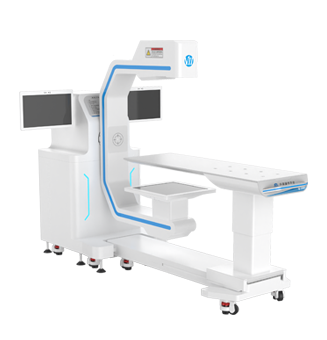

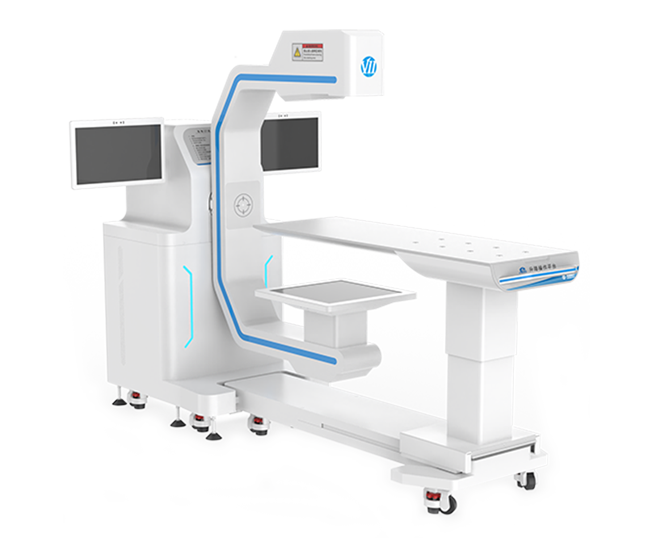

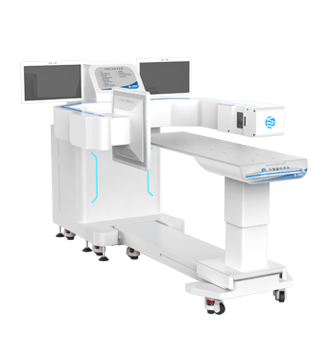

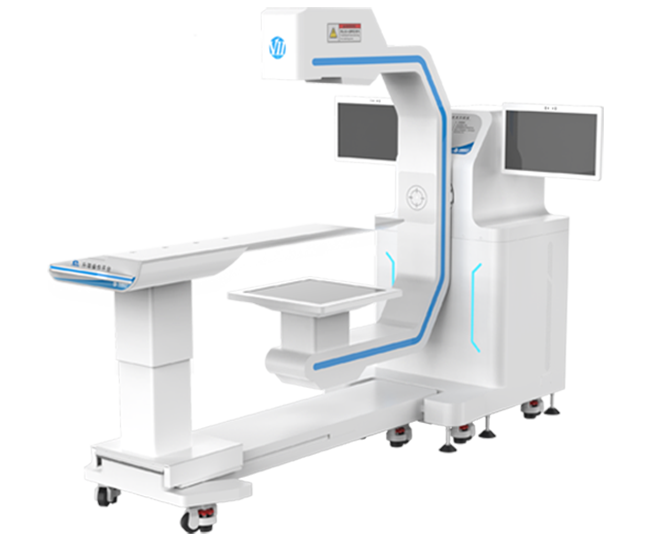

DX-Auto Plus

Veterinary Multi-functional CT Scanner

Breaking the constraints of conventional imaging systems, the open C-arm gantry and modular architecture enable seamless transition between multiple imaging modalities — including CT, DR, dynamic DR, C-arm, and DSA. This “one system, multiple applications” concept reduces equipment procurement costs for veterinary hospitals while streamlining diagnostic and treatment workflows.

Big FOV: 66*28cm
Rapid scan time: 10 seconds
600 slices; 0.18 /0.3mm slice thickness
Ventilator integration: Automatically matches our ventilator's CT mode with synchronized respiratory pause duration
Ultra-low radiation dose: Approximately 1/100 of conventional CT exposure
Extra-wide aperture: 900 mm diameter
High-speed 3D reconstruction
Comprehensive imaging software: Advanced static and dynamic X-ray operations
Specialized capabilities: Supports CPR and DSA functions

Enquiry

Video

Advantages

Extra-Large Scan Aperture

Featuring a 90cm extra-large scan aperture, this design effortlessly accommodates large dog breeds, eliminating the limitations of traditional CT scanners for medium to large pets.
Real-Time Respiratory Monitoring
The dynamic DR function enables real-time observation of respiratory motion in pets, delivering critical diagnostic insights for cardiopulmonary conditions.
Reserved DSA Upgrade Interface

The reserved DSA upgrade interface lays the foundation for future interventional therapies.

Imaging Modes

Static/Dynamic
DR Mode
C-Arm Mode
Static/Dynamic DR
CT Scan Mode
360° Rotation
DSA Mode
(Optional)

Product Features

Open Gantry Design

The C-shaped open gantry effectively reduces pet anxiety through its spacious, non-confining structure.

With a 90cm extra-large scan aperture, the system comfortably accommodates large dog breeds weighing up to 80kg, addressing the limitations of traditional CT scanners.

The open design allows veterinarians to observe pets in real time during scanning, ensuring continuous assessment and comfort.

Personalized Design

Minimalist Design

Clean lines and an uncluttered form define a sophisticated yet functional aesthetic.
Pet-centric design

Engineered with the comfort and well-being of pets in mind, our design delivers a more humane and interactive scanning experience.
Superior craftsmanship

Advanced manufacturing processes and cutting-edge technology guarantee flawless integration of every component for uncompromising quality.

Featuring a 90cm extra-large aperture and 28cm × 66cm wide FOV, our CT system delivers seamless whole-body scans for large dogs (up to 80kg). The 10-second ultra-fast scanning minimizes anesthesia exposure, significantly enhancing patient safety.

Equipped with a 3.6 lp/mm high-resolution flat panel detector, the static DR function reveals 0.1mm-level anatomical details—ideal for diagnosing orthopedic conditions (fractures, dislocations) with exceptional clarity.

Capable of 36 fps real-time imaging, dynamic DR excels in functional studies, including contrast swallowing and cardiac performance evaluation, providing unparalleled diagnostic insights.

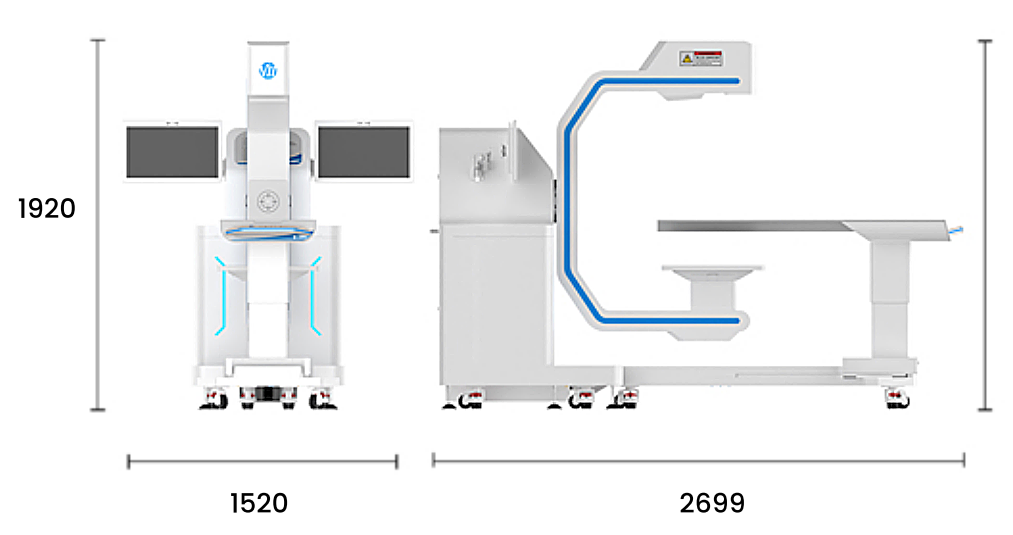

Product Size

No.	Function	CT, DR, Dynamic DR
1	Gantry Structure	C-arm
2	CT Maximum Imaging Field of View	Diameter 28cm, Length 66cm
3	CT Image Spatial Resolution	1.8lp/mm
4	CT Minimum Scan Time	10S
5	DR/Dynamic DR Imaging Field of View	43cm x 43cm
6	DR/Dynamic DR Image Spatial Resolution	≥3.6lp/mm
7	Overall Dimensions	See Dimensions Marked in the Image Above
