Venu 1717 XV

Venu 1717XV is a 17x17-inch tethered cassette-sized flat panel detector for veterinary radiographic imaging. lt features a 139 m pixel pitch, direct deposition Csl scintillator, and 16 bit A/D conversion to provided excellent image quality.Venu 1717XV supports a fast work flow for animal X-ray imaging, and is the optimal choice for both retrofit and new veterinary DR system solutions.

Cassette detector perlS0 4090, fits in bucky
Direct deposition Csl for better image quality at lower dose
139 um pixel pitch, with 16 bit ADC for more image details
Multiple trigger modes
Highly reliable, flexible tether
Supports a fast and efficient workflow

Enquiry

Video

Technical Specifications

Detector Technology	Amorphous Silicon
Scintillator	CsI
Active Area (inch)	17 × 17
Pixel Matrix	2912 × 2912
Pixel Pitch (μm)	139
Spatial Resolution (lp/mm)	3.6
AD Conversion (bit)	16
Data Interface	Ethernet
Trigger Mode	AED /Prep / Software
Preview lmage Time (s)	3
Full Image Time (s)	5

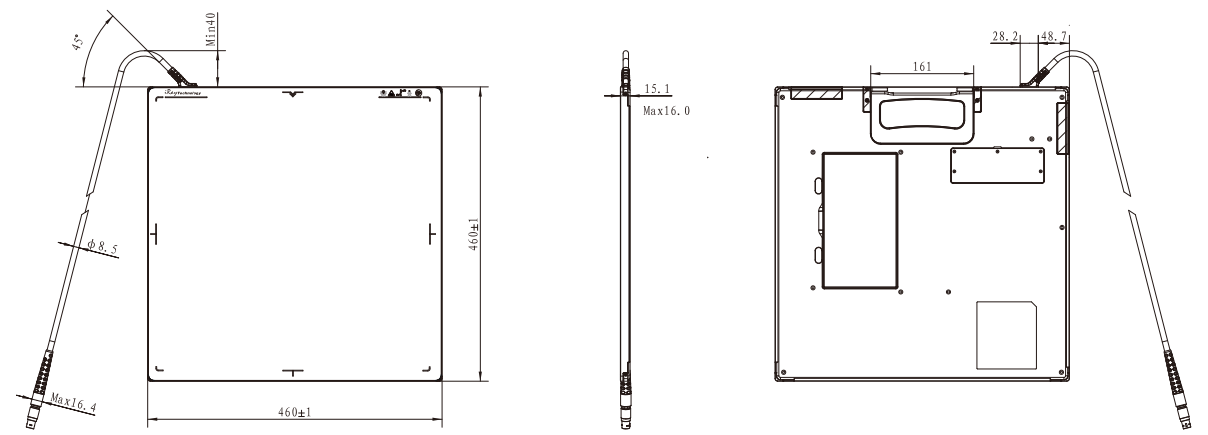

Dimensions (mm)	460 × 460 × 15
Weight (kg)	4
Power Dissipation(W)	25
Operating Temperature (°C)	5~35
Storage & Transport Temperature with Package (℃)	-10 ~ 55
Operating Humidity (% RH)	30 ~ 80 (Non-Condensing)
Storage & Transport Humidity with Package (% RH)	10 ~ 90 (Non-Condensing)
