Mars 1717 X

Mars 1717Vis a smart 17x17-inch wireless, cassette-sized FPD for radiographic imaging. lt features reliable AED, dependable wireless performance, and a long battery life. The Mars 1717V supports a fast work flow,and is the optimal choice for both retrofit and new DR system solutions.

Wireless cassette detector per ISO 4090, fits in bucky
Best-in-class 100 μm pixel pitch with 16-bit ADC for more image details
Direct deposition Csl, with excellent DQE at all frequencies
Full AED control, exposure at any time
Large capacity battery design, with 8 hoursbattery life
Lightweight design with lP56 ingress protection
Supports a fast workflow for a better usere xperience

Enquiry

Video

Technical Specifications

Detector Technology	Amorphous Silicon
Scintillator	CsI
Active Area (inch)	17 × 17
Pixel Matrix	4267 × 4267
Pixel Pitch (μm)	100
Spatial Resolution (lp/mm)	4.3
AD Conversion (bit)	16
Battery Autonomy (h)	8
WIFI	2.4G and 5G, IEEE802.11 a/b/g/n/ac
Trigger Mode	AED (Optional) / Software
Internal Image Storage	200 full size images
Full Image Time (s)	3

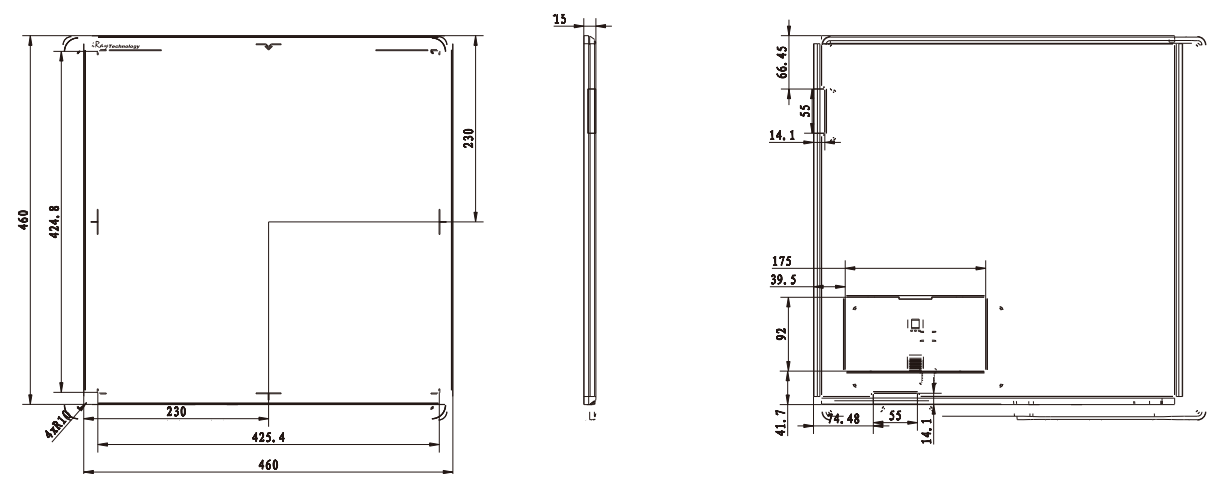

Dimensions (mm)	460 × 460 × 15
Weight (kg)	3.4
Static Loading	300 kg Uniformly
Ingress Protection	IP56
Operating Temperature (℃)	10 ~ 35
Storage & Transport Temperature with Package (℃)	-20 ~ 55
Operating Humidity (% RH)	5 ~ 90 (Non-Condensing)
Storage & Transport Humidity with Package (% RH)	5 ~ 95 (Non-Condensing)
