Mars 1717 V

Mars 1717Vis a smart 17x17-inch wireless, cassette-sized FPD for radiographic imaging. lt features reliable AED, dependable wireless performance, and a long battery life. The Mars 1717V supports a fast work flow,and is the optimal choice for both retrofit and new DR system solutions.

Wireless cassette detector per lS0 4090, fits in bucky
139 um pixel pitch, with 16 bit ADC for more image details
Stable iSync+ Automatic Exposure Detection (AED)
High Resolution Capability: 140um pixel design73% MTF @3Lp/mm
Dual band (2.4 and 5 GHz) wireless support with easy sharing
Long battery life and smart workflow
Direct deposition Csl for better image quality with lower dose

Enquiry

Video

Technical Specifications

Detector Technology	Amorphous Silicon
Scintillator	CsI
Active Area (inch)	17 × 17
Pixel Matrix	3072 × 3072
Pixel Pitch (μm)	139
Spatial Resolution (lp/mm)	3.4
AD Conversion (bit)	16
Battery Autonomy (h)	8
WIFI	2.4G and 5G, IEEE802.11 a/b/g/n/ac
Trigger Mode	AED (Optional) / Software
Internal Image Storage	200 full size images
Full Image Time (s)	5

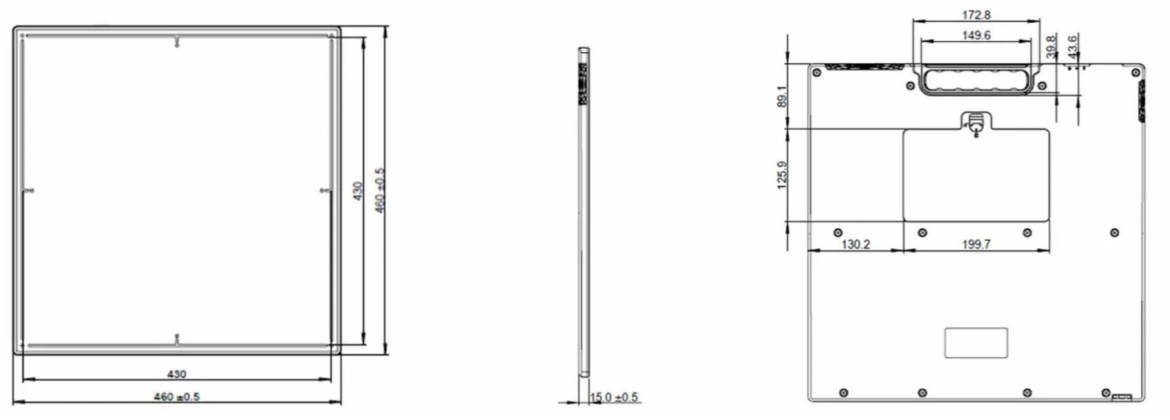

Dimensions (mm3)	460 × 460 × 15
Weight (kg)	4.6
Static Loading	150 kg Uniformly
Center Loading	135 kg @ 4 cm
Ingress Protection	IPX1
Operating Temperature (℃)	5 ~ 35
Storage & Transport Temperature with Package (℃)	-20 ~ 55
Operating Humidity (% RH)	10 ~ 90 (Non-Condensing)
Storage & Transport Humidity with Package (% RH)	5 ~ 95 (Non-Condensing)
