Video
Product features

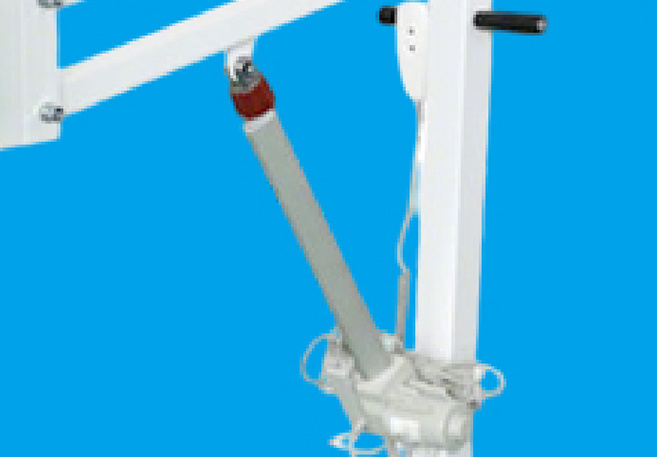

Easy lifting and lowering

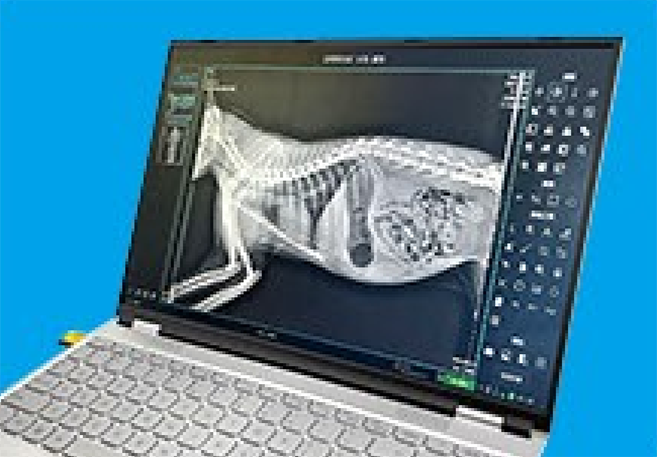

Laptop displaying clinical lmages

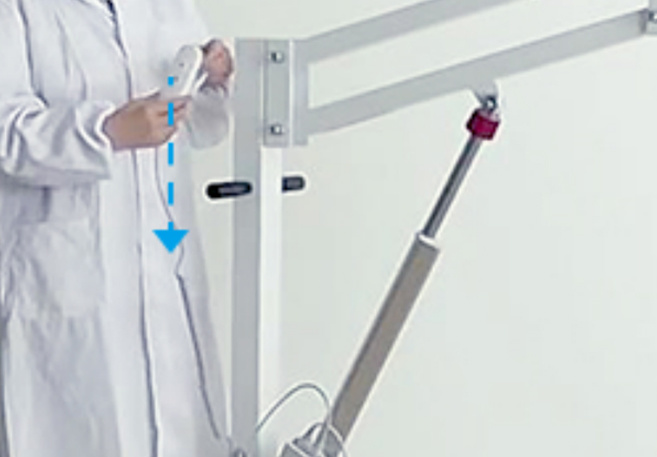

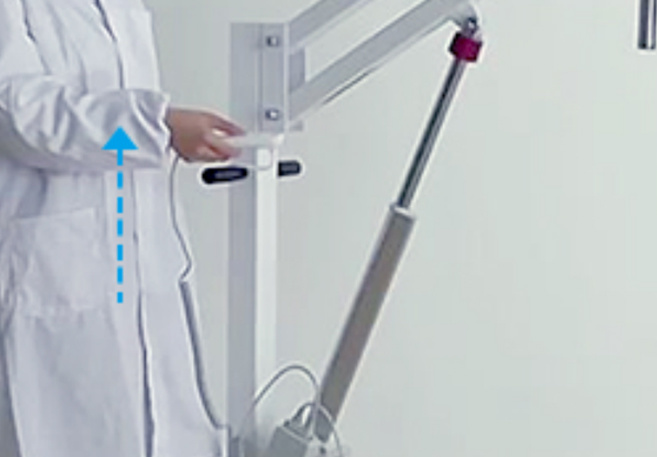

lmaging Frame down and up
lmaging Frame down and up
Clinical Images
Technical Parameters
| Wired Portable x ray | |
| OutputPowe | 5.6kW |
| Rated voltage | 220~240VACor110 |
| kV Rang | 40kV-125kV,1kV step |
| mA Range | 10-100mA |
| ms Rang | 1-4000ms |
| Screen | 9.7inchesTouchablescreen |
| Wired FPD | |
| Careviewbrand DRpaneldetector 1717incheswired | Tethered Cassette |
| 17″x17″Imaging Area | |
| Scintillator Matrix:3072x3072 | |
| Pixel Pitch:139μm | |
| DQE Performance:>65%@ 0lp/mm | |
| Product Dimensions:46.0x46.0x1.5cm | |
| Medical and Veterinary | |
| Excellent for highly detailed extremity imaging | |
| Special Features | |
| Full-field AED for broad system compatibility | |
| Direct-Deposit Csl fbr better DQE and MTF | |
| Durable carbon fiber and aluminum alloy housing | |
| Imaging table and frame | lmaging frame and trolley , hydraulic pressure rod frame |
| Lead coats | 1 sets, 5-pieces (cap , neck, glass , cloths , gloves |
| Laptop (ASUS Brand) | |
| ASUS Brand | E510 |
| CPU | Inter N5100 |
| Hard Drive | 512G Solid drive8G DDR4 |
| Storage Capacity | 8G DDR4 |
| Touchable Screen | from 800-1250 |
