DX-VA05

Digital mobile photographic X-ray machine.

Used in general ward | ICU | medical examination vehicle/emergency vehicle/door-to-door consultation disaster relief and war zone hospitals.

Flexible and efficient suitable for a variety of needs
Compact structure stronger applicability
Low input cost and low maintenance cost

Enquiry

Video

Product features

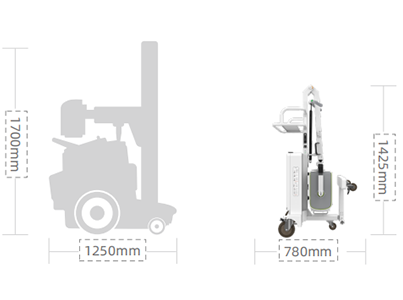

It can significantly reduce the weight of the device compared to traditional mobile devices, and it can also significantly reduce the external size,allowing you to move more smoothly in the hospital and bedside.

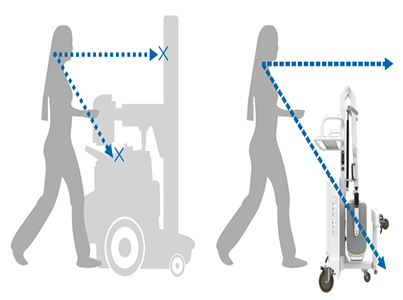

The compact movement mode ensures good visibility and passability, enhanced security when passing others in the hospital, and ease of movement in confined Spaces.

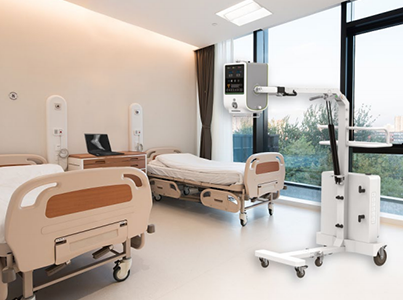

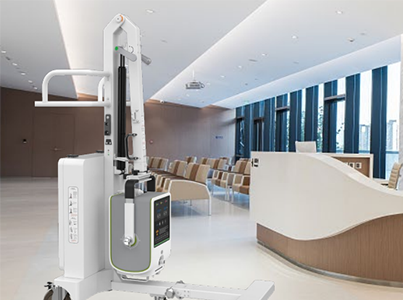

iDR605 is compact and can be easily stored under a shelf or in a corner of a room, saving space.

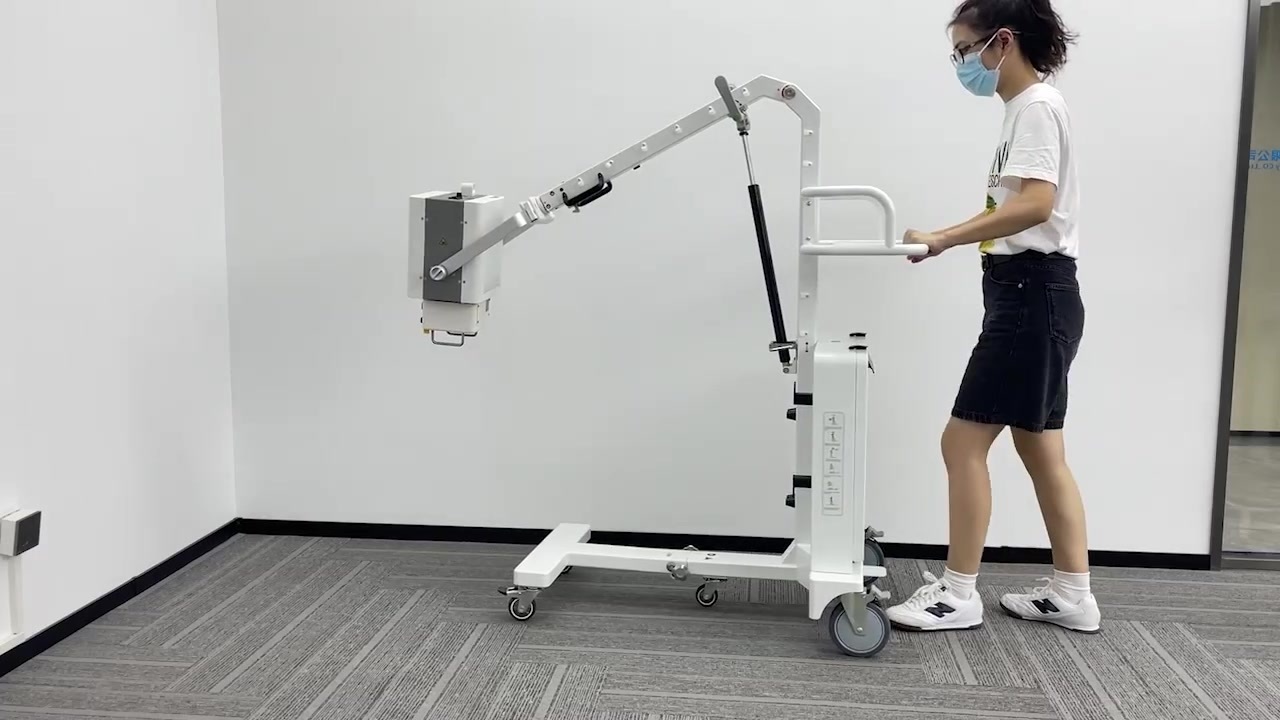

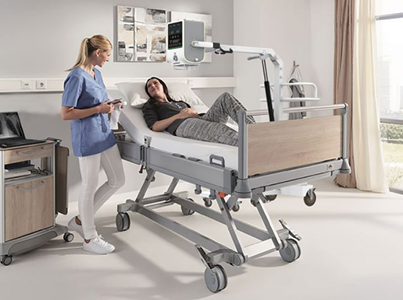

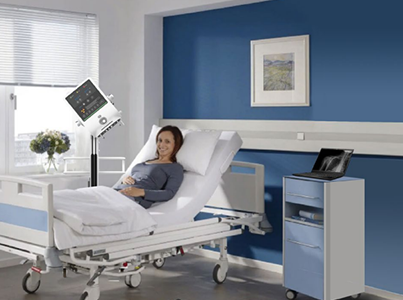

Flexible and smooth access to the best bedside position.
The iDR605 is easy to load and unload in size and weight Convenient for home consultation and field use.
Compact, flexible and efficient structure.

Application

none

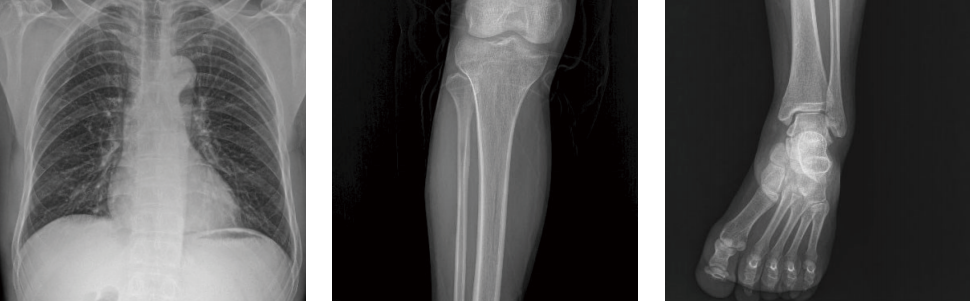

Clinical Images

none

Technical Parameters

Model	iDR605
System Requirements
Electric source（V）	AC 110 - 120 / AC 220-240,50/60Hz
Power（kW）	5
Flat Panel Detector
Type	Mars1717v-VSI
Spatial Resolution（lp/mm）	3.6
Pixel Pitch（μm）	139
Active area（inch）	17 x 17
Data Interface	Wireless
Generator
kV range（kVp)	40 -125
mAs range（mAs ）	1-100
mA range (mA)	10 -100

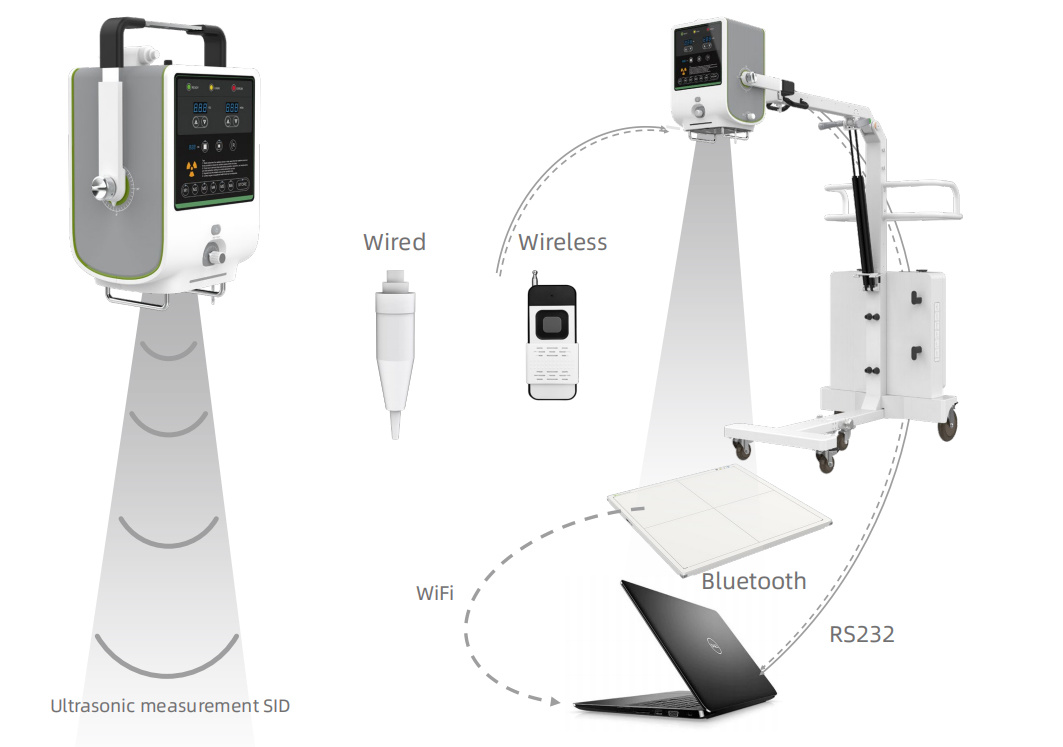

Ultrasonic ranging（mm）	500-1800
Light source on time（s）	30
Communication mode	RS-232/Bluetooth
Exposure mode	Wired/Wireless
X-ray Tube
Focal spots（mm）	0.6/1.8
Anode Angle（°）	15
Small focus power（kW）	1.27
High focus power（kW）	5

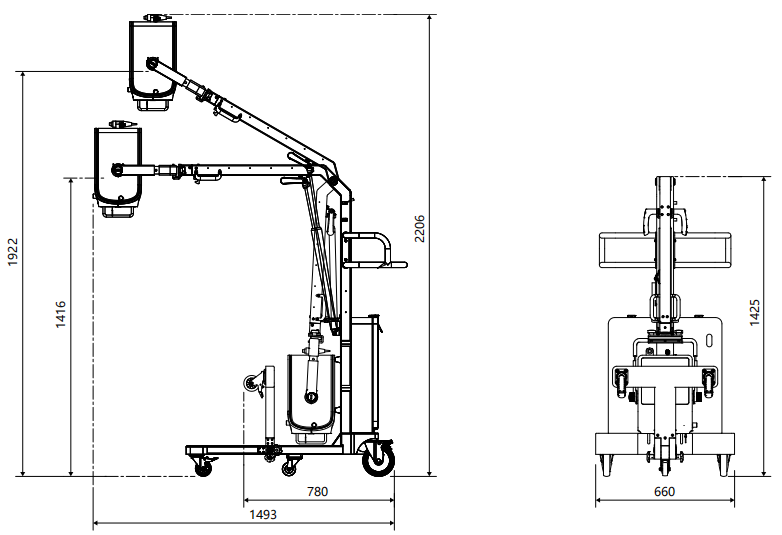

Frame
Simple rack size（mm³）	815 x 801x 2080
Chest frame size（mm³）	815 x 801x1962
