DX-VA01

Portable mobile xray machine.

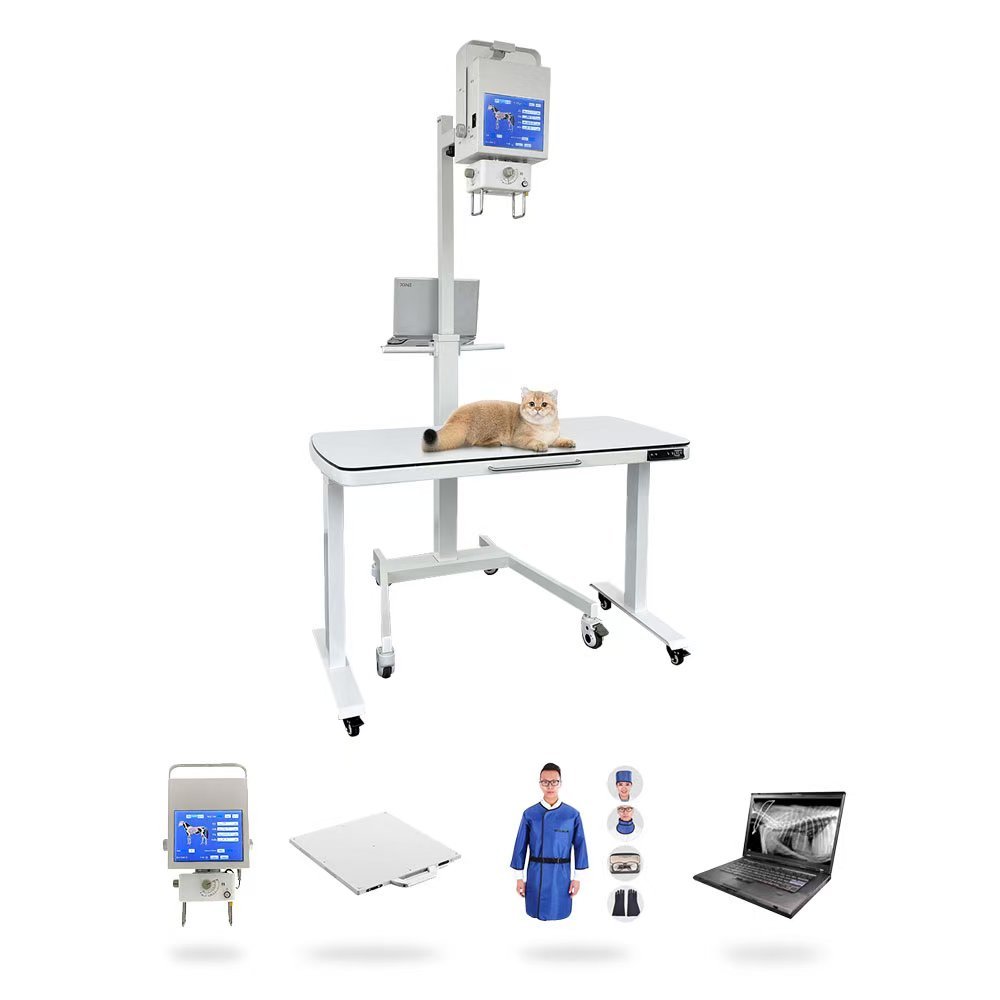

Vetuse full imaging system.

portable veterinary X-ray machine is a compact and efficient imaging solution designed for modern veterinary clinics, farms, and field operations. It provides fast and accurate diagnostic imaging for animals of all sizes, helping veterinarians detect fractures, respiratory issues, and internal conditions with ease. Its lightweight design allows easy transportation and flexible use in both indoor and outdoor environments, making it ideal for emergency and mobile veterinary services.

This device features high-resolution imaging, low radiation exposure, and quick operation, ensuring both safety and diagnostic precision. With digital output and easy data storage, it improves workflow efficiency and supports faster clinical decisions. Durable construction and stable performance make it suitable for long-term professional use in demanding veterinary environments.

Overall, it is a reliable tool that enhances veterinary diagnostic capability while reducing time and operational costs.

Enquiry

Video

Product features

none

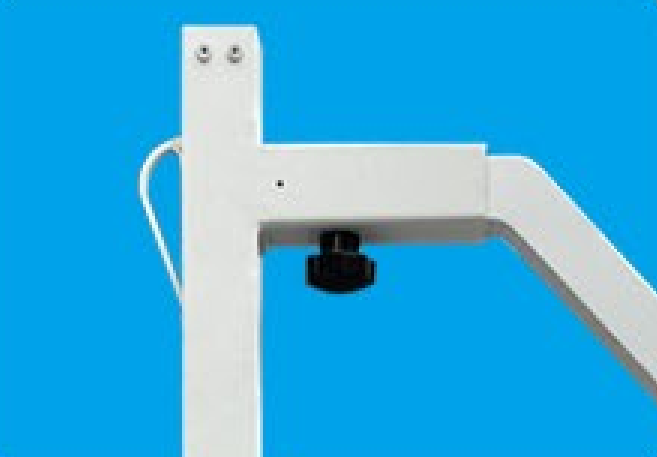

Handle unlock for easy lifting and lowering

Laptop displaying clinical lmages

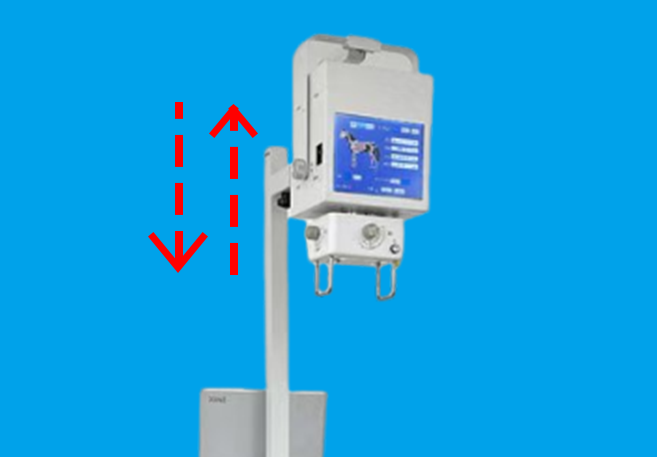

lmaging Frame down and up

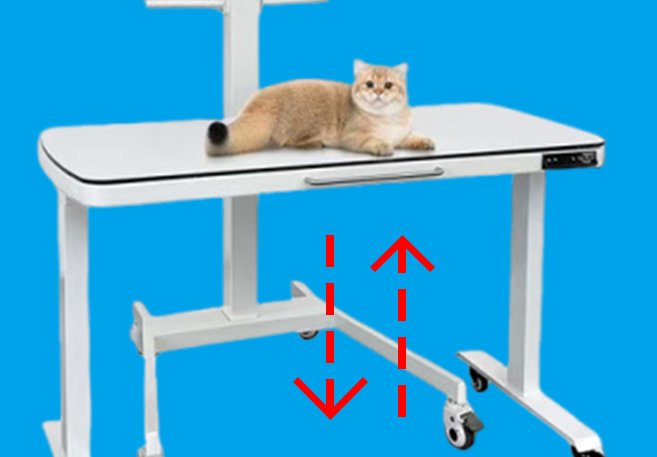

lmaging Table electric down and up

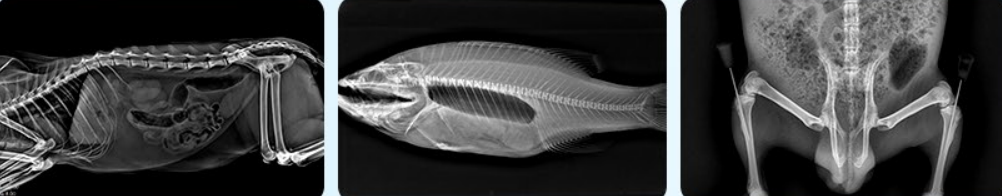

Clinical Images

none

Technical Parameters

Model	DX-VA01
System Requirements
Electric source（V）	AC 220 - 240 / AC 100-130
Power（kW）	5kw
X-ray Tube
Focal spots（mm）	0.6/1.8
Anode Angle（°）	15
kVrange(kVp)	40kV-125kV,1kVstep
mAsrange(mAs)	1-100
mArange(mA)	10-100
Exposuremode	Wired/wireles
Digital Flat Panel Detector
Panel	AmorphousSiliconActiveTFT/Diode
Scintillator	DirectDepositCsl
ActiveArea	14*17/1717inche
Imaging Frame
Simpleracksize(mm³)	815 x 801 x 208
Imaging Table
Electric down and up(mm)	from 800-1250
