CareView 1800Cwe

Excellent lmage: Direct Deposited Csl1717 Active Area
Advanced Technology: Full-Field Automatic Exposure Detection Technology
Wide Dynamic Range: Highly detailed diagnostic imaging
High Resolution Capability: 140um pixel design 73% MTF @3Lp/mm

1417 wireless FPD is a high-performance flat panel detector designed to deliver fast, high-resolution digital imaging for medical and industrial applications. With its 14×17 inch imaging area, it provides wide coverage and exceptional image clarity, making it ideal for radiography systems that require precision and efficiency.

Equipped with advanced wireless transmission technology, the detector ensures seamless data transfer and flexible operation without cable limitations. Its lightweight and durable design enhances portability while maintaining stable performance in demanding environments.

The 1417 wireless FPD features high sensitivity and low noise, enabling clear imaging with reduced radiation exposure. It supports rapid image acquisition and integration with various imaging systems, improving workflow and diagnostic accuracy.

Enquiry

Video

Specifications

Sensor
Panel	Amorphous Silicon Active TFT/Diode Array
Scintillator	Direct Deposit Csl:Tl
Active Area	430mmx430 mm
lmage Matrix Size	3072x3072
Pixel Pitch	140 um
A/D Conversion	16 bits
Image Performance
DQE(Typical)	70% @(0 Lp/mm)	62%(@0.5 Lp/mm)	54% (@1 Lp/mm)	47% (@1.5 Lp/mm)
	39% @(2 Lp/mm)	32%(@2.5Lp/mm)	23% (@3 Lp/mm)	15% (@3.5 Lp/mm)
MTF(Typical)	73% @(1 Lp/mm)	44%(@2 Lp/mm)	26% (@3 Lp/mm)	19% (@3.5 Lp/mm)
Spatial Resolution	3.57Lp/mm
Max. Linear Dose	70uGy
Dynamic Range	>80 dB
Communication
Data Interface	Gigabit Ethernet
Acquisition Time	2s-4s
Trigger Type	F²AED/Manual Sync/Software Sync
Environmental
Temperature Range	5°℃~ 35 °C(Operating),-20°C~55 °C (Storage)
Humidity Range	30%~75% RH (Non-condensing) (Operating),10%~90% RH (Non-condensing) (Storage)

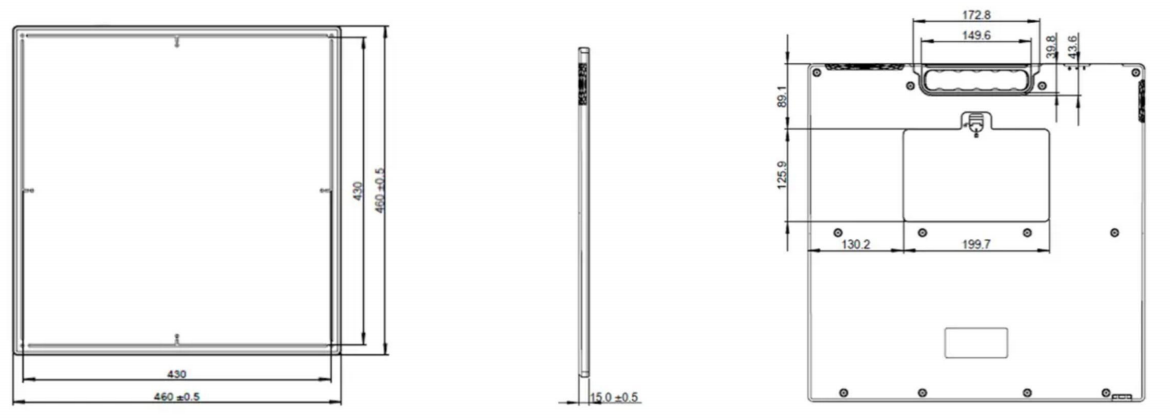

Mechanical
Weight	~4.6 kg
Size	460mmx460mmx15 mm
Housing	Anodized Aluminum Alloy Carbon Fiber
Power
Consumption	Max.48W
Power supply	100-240V
Frequency	50/60Hz
